0.2 Microstrip Coaxial RF Termination Load Flange Mounted

Name: 02 Microstrip Coaxial RF Termination Load Flange Mounted
Brand: SIPU
Price: 1 USD

Wholesale 0.2 Microstrip Coaxial RF Termination Load Flange Mounted from china suppliers

Brand Name : SIPU

Place of Origin : China

MOQ : 50

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Model Number : 0.2 Microstrip Test Load

Certification : ISO9001

Packaging Details : Carton

Price : Disguss

Supply Ability : 100000pcs/year

Delivery Time : 5-8work days

Product name : microstrip flange mounted RF coaxial termination load

Gender : Male

Type : Straight

Material : Brass

Plating : Gold

power : 1W

Characteristic impedance : 50Ω

High light : Flanges, Microstrip, Testing, Terminations, Load

Contact Now

0.2 Microstrip Flange Mounted RF Coaxial Termination Load

Product introduction

Coaxial end loads are used in microwave electronic devices and are energy absorbing components in the system, mainly used to improve the matching performance of circuits.
Applications: Generally used in system testing of radio frequency signal transmission, radio equipment, electronic instruments, various microwave equipment, etc.
Product features: flange installation, with high electrical performance, wide frequency band, small size characteristics.

Product specifications

0.2 Microstrip Coaxial RF Termination Load Flange Mounted

Important technical parameters

Electrical property		Temperature range	-65～+125℃
Characteristic impedance	50Ω	Frequency range	DC-8GHz
Power	1W	VSWR	≤1.15
Mechanical property		Durability	500times

Materials and surface treatment

Center conductor

Bronze,gold plating

Insulating medium

PTFE

Outer conductor

Brass,gold plating

Sealing ring

Silicon rubber

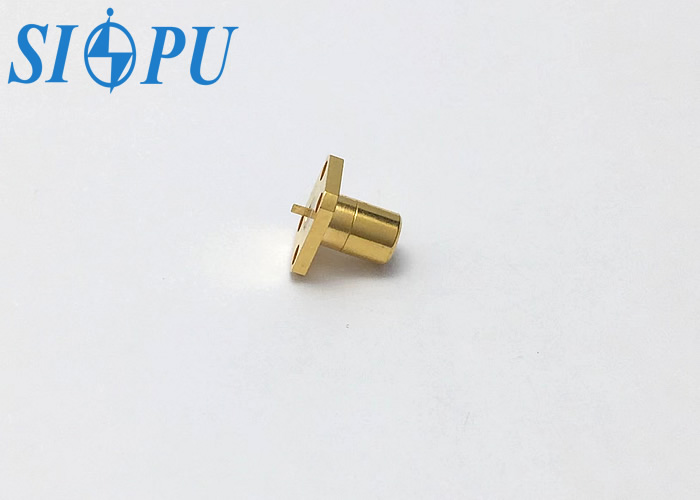

Picture display

0.2 Microstrip Coaxial RF Termination Load Flange Mounted
