TNC Male RF Coaxial Connector – Flange Mount, Straight Type

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : TNC-50JFD-4

Certification : ISO9001, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weeks

Supply Ability : 120000pcs/year

Product Name : TNC Male RF Coaxial Connector – Flange Mount, Straight Type

Gender : Male

Type : Straight

Material : Brass

Plating : Nickle

Durability : 500 times

Insulating medium : PTFE

Contact Now

TNC Male RF Coaxial Connector – Flange Mount, Straight Type

Product Overview

TNC series connectors are small to medium-power RF coaxial connectors with a threaded coupling mechanism, developed and manufactured in compliance with MIL-C-39012 and IEC 60169-17 standards. As the threaded variant of the BNC series, they offer excellent electrical performance, wide frequency bandwidth, and highly reliable connections. These connectors are fully interchangeable with similar international products.

Applications:
Ideal for use in instrumentation, communication systems, radio equipment, and other RF transmission environments.

Product Features:

Four-hole flange-mounted male connector

Tail-end inner conductor with M2 threaded hole (5 mm depth)

Wide operating frequency range

Superior vibration resistance

Secure and stable connection

Product Specifications

TNC Male RF Coaxial Connector – Flange Mount, Straight Type

Important Technical Parameters

Electrical property

Temperature range

 -65～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-11GHz

Dielectric withstanding voltage

 1500V

VSWR

 ≤1.3

Insulation resistance

 ≥5000MΩ

Insertion loss

≤0.06√F(GHz)dB

Contact resistance

Center conductor

 ≤2.0mΩ

Mechanical property

Outer conductor

 ≤0.2mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Brass, gold plating

Insulating medium

PTFE

Outer conductor

Brass, nickel plating

Sealing ring

Silicon rubber

Product Image Gallery

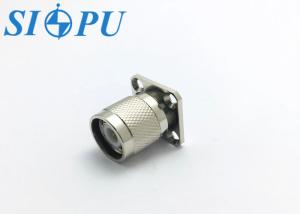

TNC Male RF Coaxial Connector – Flange Mount, Straight TypeTNC Male RF Coaxial Connector – Flange Mount, Straight Type


Product Tags:

RF TNC Connectors



Flange Mount TNC Connectors



Male TNC Connectors


Wholesale TNC Male RF Coaxial Connector – Flange Mount, Straight Type from china suppliers
