SMA Female To MCX Female RF Coax Adapter Gold Plating

  • 1
  • 2

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C,T/T,Western Union

Model Number : SMA/MCX-KK

Certification : ISO9001 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 4-8weekd

Supply Ability : 120000pcs/year

Product name : SMA Female to MCX Female RF Coax Adapter

Material : Brass

Plating : Gold

Durability 500 times : 500 times

High light : The two ends are mated with SMA male and MCX male series connectors

Contact Now

SMA Female To MCX Female RF Coax Adapter

Product introduction

RF coaxial adapters of various specifications are the guarantee to realize the correct transfer of connectors in different series and the same series, and mainly play the role of bridge connection.
Scope of application: It is used for the conversion and connection of the system, and is generally used in test instruments and test cables.
Product features: The two ends are mated with SMA male and MCX male series connectors, which have the characteristics of small size, high reliability and excellent performance.

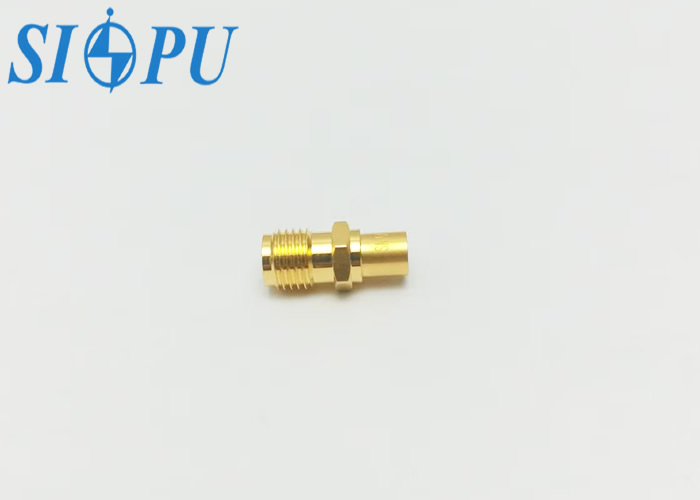

Product appearance

SMA Female To MCX Female RF Coax Adapter Gold Plating

Important technical parameter

Electrical property

Temperature range-65～+125℃

Characteristic impedance

50ΩFrequency rangeDC-6GHz

Dielectric withstanding voltage

750VVSWR≤1.3

Insulation resistance

≥5000MΩInsertion loss

≤0.06√F(GHz)dB

Contact resistance

Center conductor≤5.0mΩMechanical property
Outer conductor≤2.5mΩDurability500times

Materials and surface treatment

Center conductor

Beryllium bronze,gold platingInsulating mediumPTFE

Outer conductor

Brass,gold plating//

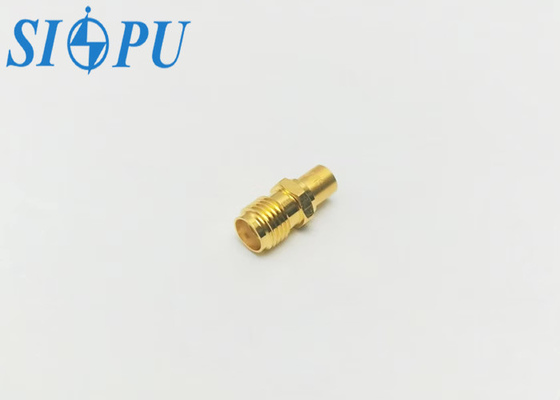

Picture display

SMA Female To MCX Female RF Coax Adapter Gold PlatingSMA Female To MCX Female RF Coax Adapter Gold Plating
