N Female to N Female RF Coax Adapter – Flange Mounted

Brand Name : SIPU

Place of Origin : China

MOQ : 50

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Model Number : N-KFK

Certification : ISO9001, RoHS, CE

Price : Discuss

Packaging Details : Carton

Supply Ability : 100000

Delivery Time : 5-8work days

Product name : N Female to N Female RF Coax Adapter – Flange Mounted

Gender : Female

Type : Straight

Material : Brass

Plating : Nickel

Contact Now

N Female to N Female RF Coax Adapter – Flange Mounted

Product Overview

This RF coaxial adapter enables reliable interconnection between RF components, supporting transitions both within the same connector series and across different types. It acts as a critical link in various RF systems, ensuring signal integrity and mechanical stability.

Applications
Ideal for system conversion and connectivity in test equipment, test cables, and laboratory setups.

Key Features

Flange-mounted design for secure installation

N female connectors on both ends

High reliability and excellent electrical performance

Strong resistance to environmental stress and mechanical wear

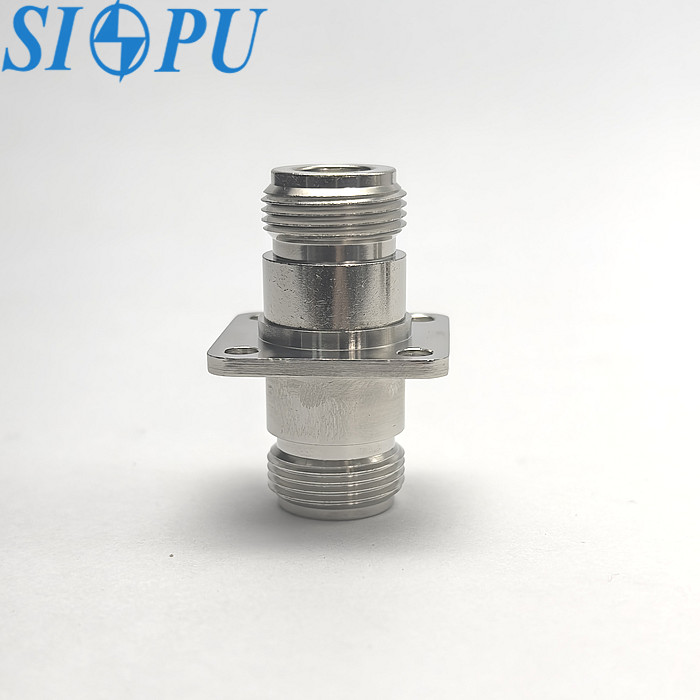

Product Appearance

N Female to N Female RF Coax Adapter – Flange Mounted

Important Technical Parameter

Electrical property

Tempeature range

-65~+125℃

Characteristic impedance

50Ω

Frequency range

DC-11GHz

Dielectric withstanding voltage

1500V

VSWR

≤1.3

Insulation resistance

≥5000MΩ

Insertion loss

≤0.06√F(GHz)dB

Contact resistance

Center conductor

≤1.5mΩ

Mechanical property

Outer conductor

≤2.0mΩ

Durability

500次

Materials and Surface Treatment

Center conductor

Bronze,gold plating

Insulating medium

PTFE

Outer conductor

Brass,nickel plating

/ /

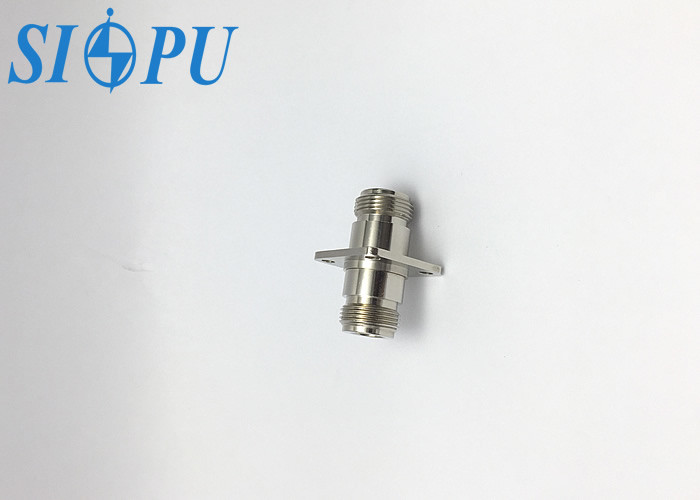

Product Image Gallery

N Female to N Female RF Coax Adapter – Flange MountedN Female to N Female RF Coax Adapter – Flange MountedN Female to N Female RF Coax Adapter – Flange MountedN Female to N Female RF Coax Adapter – Flange MountedN Female to N Female RF Coax Adapter – Flange MountedN Female to N Female RF Coax Adapter – Flange Mounted
