SSMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 50

Payment Terms : L/C, T/T, Western Union

Model Number : SSMB-KW3-3

Certification : ISO9001, RoHS, CE

Packaging Details : Carton

Supply Ability : 100000pcs/year

Price : Discuss

Delivery Time : 5-8work days

Product name : SSMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable

Gender : Female

Type : Right angle

Material : Brass

Plating : Gold

Insulating medium : PTEE

Durability : 500 times

Contact Now

SSMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable

Product Overview

The SSMB series RF coaxial connector is a miniature push-in connector known for its compact size, light weight, quick connection, and good shock resistance. It is specifically designed for connecting RF coaxial cables in miniature radio equipment and electronic instruments.

Applications

Radio communication equipment

Electronic instruments

Compact RF modules

Product Features

Right-angle (bent) SSMB female structure

Compatible with RG316/U coaxial cable

Snap-on coupling for fast and reliable connection

Small size and lightweight

Easy installation with excellent electrical performance

Product Specifications

SSMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable

Important Technical Parameters

Electrical property

Temperature range

 -65～+165℃

Characteristic impedance

 50Ω

Frequency range

 DC-3GHz

Dielectric withstanding voltage

 750V

VSWR

 ≤1.5

Insulation resistance

 ≥1000MΩ

Insertion loss

≤0.1√F(GHz)dB

Contact resistance

Center conductor

 ≤5.0mΩ

Mechanical property

Outer conductor

 ≤2.5mΩ

Durability

 500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

 / /

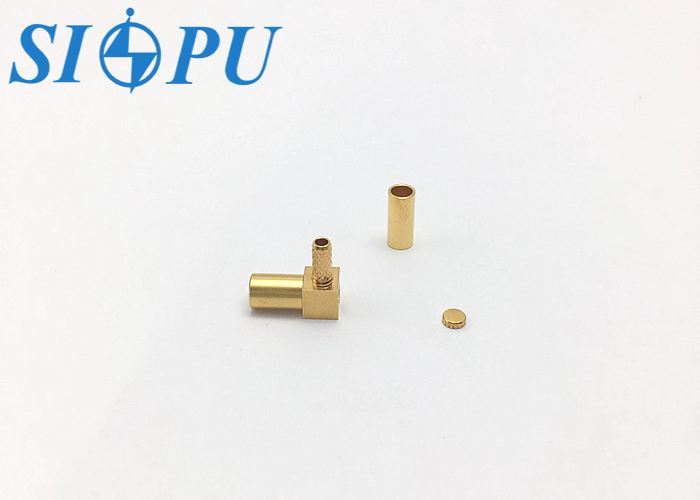

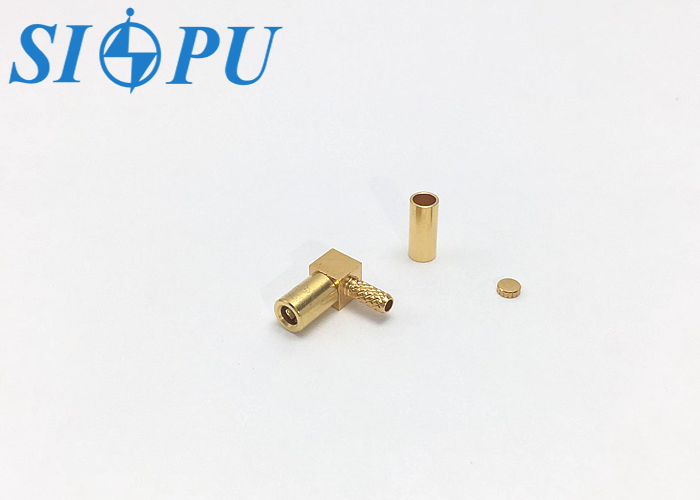

Product Image Gallery

SSMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U CableSSMB Female RF Coaxial Connector – Right-Angle, Compatible with RG316/U Cable
