Stainless Steel SMP Male RF Connector – Thread Mount, Microstrip Type

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMP-JYD9G

Certification : ISO9001-2017, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 3-6 Weeks

Supply Ability : 100000pcs/year

Product name : Stainless Steel SMP Male RF Connector – Thread Mount, Microstrip Type

Characteristic impedance : 50Ω

Frequency range : DC-40GHz

Durability : 500 times

Gender : Male

Type : Straight

Material : Stainless steel

Plating : Passivation

Contact Now

Stainless Steel SMP Male RF Connector – Thread Mount, Microstrip Type

Product Overview

The SMP series is a next-generation blind-mate RF coaxial connector featuring a compact form factor, lightweight construction, and high-frequency performance. It supports push-on mating with a limited detent interface and allows for a certain degree of axial and radial misalignment—making it ideal for high-density interconnections between printed circuit boards, chassis, and cabinet modules. The stainless steel construction provides enhanced durability and environmental resistance.

Applications
Widely used in antennas, broadband systems, radar equipment, aerospace electronics, and communication modules requiring compact and high-reliability RF connections.

Key Features

Limited detent (light retention) interface for quick blind-mating

Threaded mounting for secure and stable installation

Compact and lightweight design for space-constrained applications

Excellent shock and vibration resistance

Outstanding electrical performance across high-frequency ranges

Ideal for microstrip and modular RF system integration

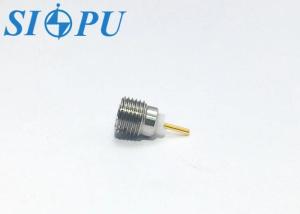

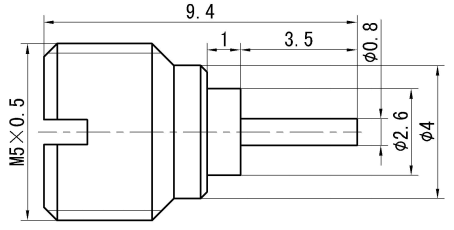

Product Appearance

Stainless Steel SMP Male RF Connector – Thread Mount, Microstrip Type

Important Technical Parameter

Electrical property

Temperature range

-65+125

Characteristic impedance

50

Frequency range

DC-40GHz

Dielectric withstanding voltage

`

500V

VSWR

1.1+0.01F(GHz)

Insulation resistance

5000M

Insertion loss

≤0.07F(GHz)dB

Contact resistance

Center conductor

6.0m

Mechanical property

Outer conductor

2.0m

Durability

500次

Limited detent

(max)

Engagement force

45N

(min)

Separation force

9N

Materials and Surface Treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

PTFE

Outer conductor

Stainless steel,passivating

/

/

Product Image Gallery

Stainless Steel SMP Male RF Connector – Thread Mount, Microstrip Type
